DIN7985Z
round head
Rice slot
Fully threaded
平端
产品信息
- 产品材质 Stainless steel, carbon steel
- 产品标准 德标
- Performance level 4.8, 8.8, A2-70, A4-70
- surface treatment true color, 环保镀锌, 电镀锌, 电镀镍

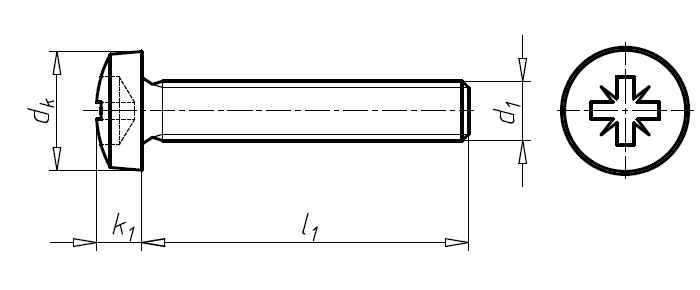

产品图纸
供货范围
| Material | Material | Performance level | surface treatment | 常规供货范围 | RoHS | 其他 |
|---|---|---|---|---|---|---|
| carbon steel | ST | 4.8 | true color | M2.5-M8 | ||
| carbon steel | ST | 4.8 | 电镀锌 | M2-M8 | ||
| carbon steel | ST | 4.8 | 环保镀锌 | M2.5-M6 | Yes | |
| carbon steel | ST | 4.8 | 电镀镍 | M2.5-M6 | Yes | |
| carbon steel | ST | 8.8 | true color | M6 | ||
| carbon steel | ST | 8.8 | 电镀锌 | M6 | ||
| Stainless steel | A2 | 70 | true color | M1.6-M8 | Yes | |
| Stainless steel | A4 | 70 | true color | M2-M8 | Yes |
更多材质
| (mm) | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| da(max) | 2.1 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 |
| dk(max) | 3.2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| dk(min) | 2.9 | 3.7 | 4.7 | 5.7 | 6.64 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 |
| r(max) | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 |
| No. | 0 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 |
| M | 1.8 | 2.5 | 2.7 | 3.1 | 4.2 | 4.6 | 5.3 | 6.8 | 9 | 10.2 |
| t(min) | 0.72 | 1.1 | 1.3 | 1.7 | 1.74 | 2.04 | 2.77 | 3.03 | 4.18 | 5.38 |
| t(max) | 1.02 | 1.4 | 1.6 | 2 | 2.24 | 2.54 | 3.27 | 3.53 | 4.68 | 5.88 |
| h(max) | 1.42 | 1.72 | 2.12 | 2.52 | 2.82 | 3.25 | 3.95 | 4.75 | 6.15 | 7.68 |
| h(min) | 1.18 | 1.48 | 1.88 | 2.28 | 2.58 | 2.95 | 3.65 | 4.45 | 5.85 | 7.32 |
| k | 0.8 | 1.1 | 1.3 | 1.6 | 1.9 | 2 | 2.5 | 3 | 3.7 | 4.8 |
