DIN5406
产品信息
- 产品材质 carbon steel
- 产品标准 德标
- surface treatment true color

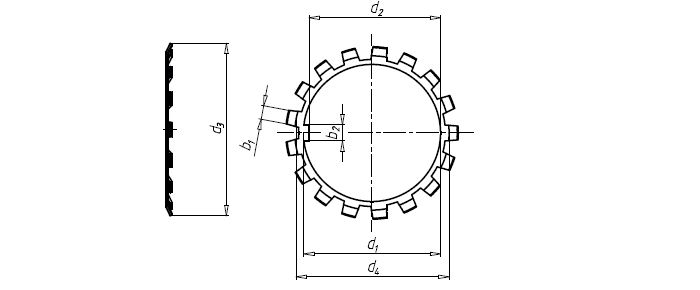

产品图纸
供货范围
| Material | Material | Performance level | surface treatment | 常规供货范围 | RoHS | 其他 |
|---|---|---|---|---|---|---|
| carbon steel | ST | true color | 8.5-233 | Yes |
更多材质
Gallery not found.
| (mm) | Φ120 | Φ130 | Φ140 | Φ150 | Φ160 | Φ170 | Φ180 | Φ190 | Φ200 |
|---|---|---|---|---|---|---|---|---|---|
| d(max) | 120.4 | 130.45 | 140.45 | 150.46 | 160.46 | 170.48 | 180.48 | 190.53 | 200.53 |
| d(min) | 120.18 | 130.2 | 140.2 | 150.21 | 160.21 | 170.23 | 180.23 | 190.24 | 200.24 |
| d1(max) | 135 | 145 | 155 | 170 | 180 | 190 | 200 | 210 | 222 |
| d1(min) | 134.37 | 144.37 | 154.37 | 169.37 | 179.37 | 189.28 | 199.28 | 209.28 | 221.28 |
| #NAME? | 13.71 | 13.71 | 15.71 | 15.71 | 17.71 | 17.71 | 19.7 | 19.7 | 19.7 |
| #NAME? | 13.01 | 13.01 | 15.01 | 15.01 | 17.01 | 17.01 | 18.86 | 18.86 | 18.86 |
| n(max) | 115.4 | 125.45 | 135.45 | 145.46 | 154.46 | 164.48 | 174.48 | 184.53 | 194.53 |
| n(min) | 115.18 | 125.2 | 135.2 | 145.21 | 154.21 | 164.23 | 174.23 | 184.24 | 194.24 |
| #NAME? | 11.71 | 11.71 | 11.71 | 13.71 | 13.71 | 15.71 | 15.71 | 15.71 | 17.71 |
| #NAME? | 11.01 | 11.01 | 11.01 | 13.01 | 13.01 | 15.01 | 15.01 | 15.01 | 17.01 |
| h | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| dc(max) | 137 | 147 | 157 | 172 | 182 | 192.3 | 202.3 | 212.3 | 224.3 |
| dc(min) | 133 | 143 | 153 | 168 | 178 | 187.7 | 197.7 | 207.7 | 219.7 |
