DIN6797J
产品信息
- 产品材质 Stainless steel, carbon steel
- surface treatment true color, 电镀锌, 非电解锌片涂层

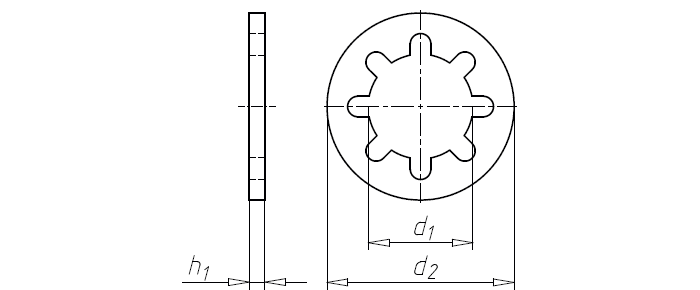

产品图纸
供货范围
| Material | Material | Performance level | 涂层简称 | surface treatment | 供货范围(公称尺寸d) | RoHS | 其他 |
|---|---|---|---|---|---|---|---|
| carbon steel | ST | - | Plain | true color | 2-30 | ||
| carbon steel | ST | - | Zinc plated | 电镀锌 | 2.5-30 | ||
| Stainless steel | A2 | - | Plain | true color | 2-30 | Yes | |
| carbon steel | ST | - | ZF-SH | 非电解锌片涂层 | 6-16 | Yes |
更多材质
Gallery not found.
| (mm) | Φ1.6 | Φ2 | Φ2.5 | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ7 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d(min) | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 |
| d(max) | 1.84 | 2.34 | 2.84 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 7.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 | 28.33 | 31.39 |
| dc(max) | 3.6 | 4.5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 12.5 | 15 | 18 | 20.5 | 24 | 26 | 30 | 33 | 36 | 38 | 44 | 48 |
| dc(min) | 3.3 | 4.2 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 10.57 | 12.07 | 14.57 | 17.57 | 19.98 | 23.48 | 25.48 | 29.48 | 32.38 | 35.38 | 37.38 | 43.38 | 47.38 |
| h | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.8 | 0.9 | 1 | 1 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 | 1.6 | 1.6 |
| 最小齿数 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 9 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 | 14 |
