DIN929
产品信息
- 产品材质 Stainless steel, carbon steel
- 产品标准 德标
- surface treatment true color, 电镀锌

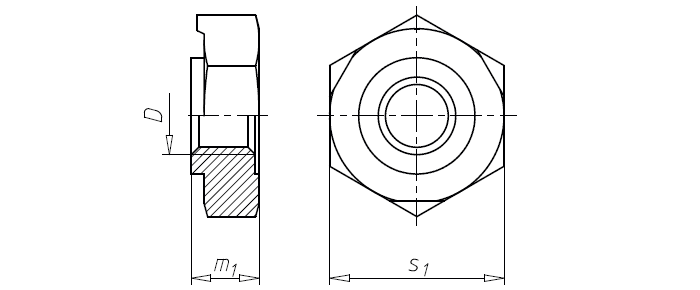

产品图纸
供货范围
| Material | Material | Performance level | 涂层简称 | surface treatment | 常规供货范围 | RoHS | 其他 |
|---|---|---|---|---|---|---|---|
| carbon steel | ST | - | Plain | true color | M3-M16 | ||
| carbon steel | ST | - | Zinc plated | 电镀锌 | M10-M12 | ||
| Stainless steel | A2 | - | Plain | true color | M3-M16 | Yes | |
| Stainless steel | A4 | - | Plain | true color | M3-M16 | Yes |
更多材质
Gallery not found.
| (mm) | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|---|
| P | 0.7 | 0.8 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 |
| e(min) | 9 | 12 | 13 | 18 | 22 | 25 | 28 | 32 |
| h(max) | 0.7 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | 1.5 | 1.7 |
| h(min) | 0.5 | 0.7 | 0.7 | 0.9 | 1.1 | 1.3 | 1.3 | 1.5 |
| h1(min) | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.75 | 1.75 | 2 |
| h1(max) | 1.3 | 1.5 | 1.8 | 2 | 2.2 | 3 | 3.2 | 4 |
| k(max) | 3.5 | 4.2 | 5 | 6.5 | 8 | 9.5 | 11.4 | 13 |
| k(min) | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 9.14 | 10.97 | 12.57 |
| s(max) | 7 | 9 | 10 | 14 | 17 | 19 | 22 | 24 |
| s(min) | 6.64 | 8.64 | 9.64 | 13.57 | 16.57 | 18.48 | 21.48 | 23.48 |
