DIN6331
产品信息
- 产品材质 carbon steel
- 产品标准 德标
- Performance level 10, A2-50, A4-50
- surface treatment true color, 电镀锌

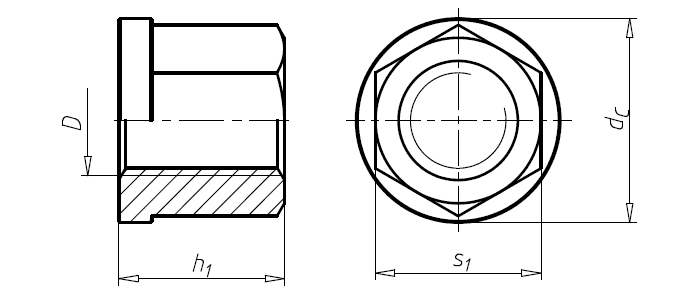

产品图纸
供货范围
| Material | Material | Performance level | 涂层简称 | surface treatment | 常规供货范围 | RoHS | 其他 |
|---|---|---|---|---|---|---|---|
| carbon steel | ST | 10 | Plain | true color | M6-M36 | ||
| carbon steel | ST | 10 | Zinc plated | 电镀锌 | M6-M30 | ||
| Stainless steel | A2 | 50 | Plain | true color | M6-M36 | Yes | |
| Stainless steel | A4 | 50 | Plain | true color | M6-M36 | Yes |
更多材质
Gallery not found.
| (mm) | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M27 | M30 | M36 | M42 | M48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 |
| h(max) | 3.125 | 3.65 | 4.15 | 4.15 | 5.15 | 6.15 | 6.15 | 7.18 | 8.18 | 10.18 | 12.215 | 14.215 |
| h(min) | 2.875 | 3.35 | 3.85 | 3.85 | 4.85 | 5.85 | 5.85 | 6.82 | 7.82 | 9.82 | 11.785 | 13.785 |
| dc(max) | 14 | 18 | 22 | 25 | 31 | 37 | 45 | 50 | 58 | 68 | 80 | 92 |
| dc(min) | 13.73 | 17.73 | 21.67 | 24.67 | 30.61 | 36.61 | 44.61 | 49.61 | 57.54 | 67.54 | 79.54 | 91.46 |
| e(min) | 11.05 | 14.38 | 17.77 | 20.03 | 26.75 | 33.53 | 39.98 | 45.63 | 51.28 | 61.31 | 72.61 | 83.91 |
| k(max) | 9.29 | 12.35 | 15.35 | 18.35 | 24.42 | 30.42 | 36.5 | 40.5 | 45.5 | 54.6 | 63.6 | 72.6 |
| k(min) | 8.71 | 11.65 | 14.65 | 17.65 | 23.58 | 29.58 | 35.5 | 39.5 | 44.5 | 53.4 | 62.4 | 71.4 |
| s(max) | 10 | 13 | 16 | 18 | 24 | 30 | 36 | 41 | 46 | 55 | 65 | 75 |
| s(min) | 9.78 | 12.73 | 15.73 | 17.73 | 23.67 | 29.67 | 35.38 | 40.38 | 45.38 | 54.26 | 64.26 | 74.26 |
